Arduino Library for Hmc6352

As part of my Xbee sensor project, I created an object oriented API to access HMC6352 compass functionality and I decided to make it downloadable as an Hmc6352 Arduino Library.
Just unzip the file in the $arduino_home/hardware/libraries/. At the end you should end with $arduino_home/hardware/libraries/Hmc6352.

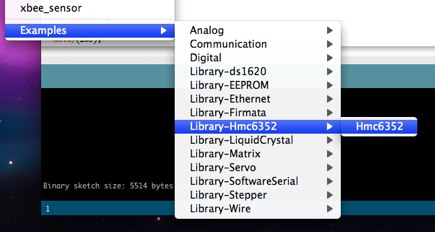

The library includes an example on how to use it (in File ⇒ Sketchbook ⇒ Examples ⇒ Library-Hmc6352 ⇒ Hmc6352.

Hmc6352 example menu

The example looks like this (also available as gist):

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47


<span class='line'>/*
</span><span class='line'> * hmc6352example.pde
</span><span class='line'> *
</span><span class='line'> * Copyright (c) 2009 Ruben Laguna &lt;ruben.laguna at gmail.com>. All rights reserved.
</span><span class='line'> *
</span><span class='line'> *
</span><span class='line'> * This program is free software: you can redistribute it and/or modify
</span><span class='line'> * it under the terms of the GNU General Public License as published by
</span><span class='line'> * the Free Software Foundation, either version 3 of the License, or
</span><span class='line'> * (at your option) any later version.
</span><span class='line'> *
</span><span class='line'> * This program is distributed in the hope that it will be useful,
</span><span class='line'> * but WITHOUT ANY WARRANTY; without even the implied warranty of
</span><span class='line'> * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
</span><span class='line'> * GNU General Public License for more details.
</span><span class='line'> *
</span><span class='line'> * You should have received a copy of the GNU General Public License
</span><span class='line'> * along with this program.  If not, see &lt;http://www.gnu.org/licenses/>.
</span><span class='line'> */
</span><span class='line'>
</span><span class='line'>
</span><span class='line'>#include &lt;hmc6352.h>
</span><span class='line'>
</span><span class='line'>
</span><span class='line'>
</span><span class='line'>//set up hmc6352
</span><span class='line'>Hmc6352 hmc6352;
</span><span class='line'>
</span><span class='line'>
</span><span class='line'>void setup()  {
</span><span class='line'>  Serial.begin(9600);
</span><span class='line'>  delay(100);
</span><span class='line'>
</span><span class='line'>  Serial.print("RST\r\n");delay(100);
</span><span class='line'>}
</span><span class='line'>
</span><span class='line'>
</span><span class='line'>void loop()
</span><span class='line'>{
</span><span class='line'>  hmc6352.wake();
</span><span class='line'>  float a = hmc6352.getHeading();
</span><span class='line'>  hmc6352.sleep();
</span><span class='line'>
</span><span class='line'>  Serial.print((int)a,DEC);
</span><span class='line'>  Serial.print("\r\n");
</span><span class='line'>
</span><span class='line'>}</span>


References:
